| MLE supply

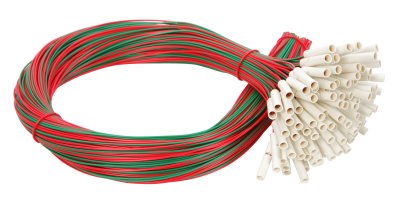

a range of Czech manufactured igniters to the UK designed for fireworks
and demolition work.
Holding stocks of the most
popular types, we also provide custom types taylored to customers requirements
and you can have a go configuring your own by clicking on the ordering
link above. |
| Fusehead type | Selection | Fusehead resistance | No-fire current during 5 min. | Firing current during 4 ms | Temperature range |
SO  |
No. 1 | 0.48 Ω - 0.52 Ω or 0.52 Ω - 0.56 Ω |
0.45 Amps | 2.12 Amps | -20°C bis +40°C |
| No. 2 | 0.48 Ω - 0.52 Ω or 0.52 Ω - 0.56 Ω |
0.45 Amps | 2.12 Amps | ||
NO |
No. 22 | 1.5 Ω - 1.7 Ω
or 1.7 Ω -1.9 Ω |
0.18 Amps | 1.0 Amps |
| Wire type | Wire material | Core diameter | Diameter including insulation | Maximum resistance of 1 m wire |
Single
core |
Fe (tinned steel) | 0.65 mm | 1.4 mm | 0.400 Ω |
| Cu (copper) | 0.50 mm | 1.3 mm | 0.092 Ω | |

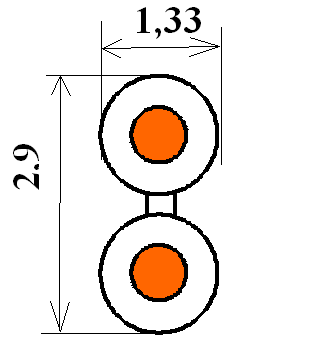

Twin
Core |
Cu (copper) | 0.50 mm | 1,33 mm x 2,9 mm | 0.092 Ω |
| The reliability
of these igniters to as good as it gets, you really can't get better.
MLE use these in shows and have never had a single one fail.
|
